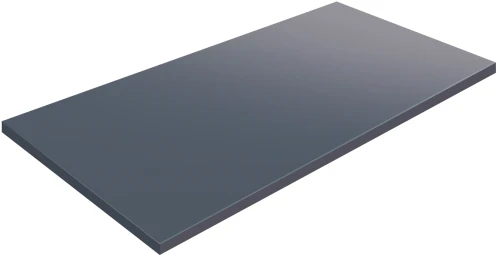

20mm XPS Premium Insulation Board 1200x600mm

Quick Find: 13530
Part Number: 019385
RRP: £14.35
£9.56 exc VAT
Large order Bulk Discounts Available upon request
call us now on 01473 559079 to find out more!
RangeXPS Premium
Model1200 x 600

XPS Premium Insulation Boards are specifically designed for use with our electric underfloor heating systems on concrete/screeded floors.

XPS Premium Insulation Boards are also used as a high quality insulation for our underwood heating systems, these boards are available in 6mm, 10mm and 20mm thickness.

High compressive strength (30tonnes / m2), light weight, high efficiency and low cost make this thermal board an ideal choice when fitting heating on to a poorly insulated concrete or screed base.

If using with the underwood heating aluminium foil system they can be simply laid onto the surface in a staggered pattern.

For undertile systems this product must be fixed down using our flexible tile adhesive.

Technical Specifications
Compressive Strength (KPa) 300
Depth 20 mm
Fire Classification Class E : EN 13501-1
Product Type Insulation Board
Service temperature limit -50°C +75°C
