Stiebel Eltron WPL-A 07 HK Premium Compact Set - with the HSBC 225 S 1

View all Air Source Heat Pump Kits

Stiebel Eltron WPL-A 07 HK Premium Compact Set - with the HSBC 225 S 1
Stiebel Eltron WPL-A 07 HK Premium Compact Set - with the HSBC 225 S 1
Fuel type

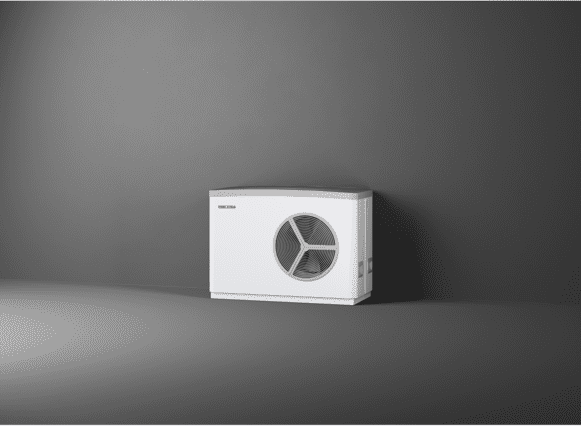

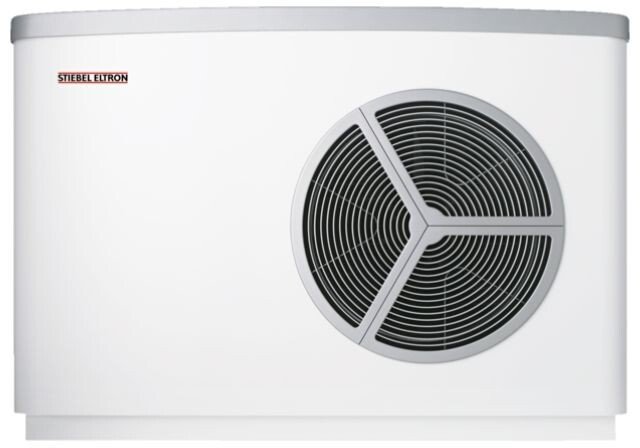

  • 7kW Air source heat pump WPL-A 07 HK 230 Premium
  • High efficiency and low operating costs all year round
  • 5 year warranty which includes parts and labour
  • Low noise emissions due to intelligent appliance design

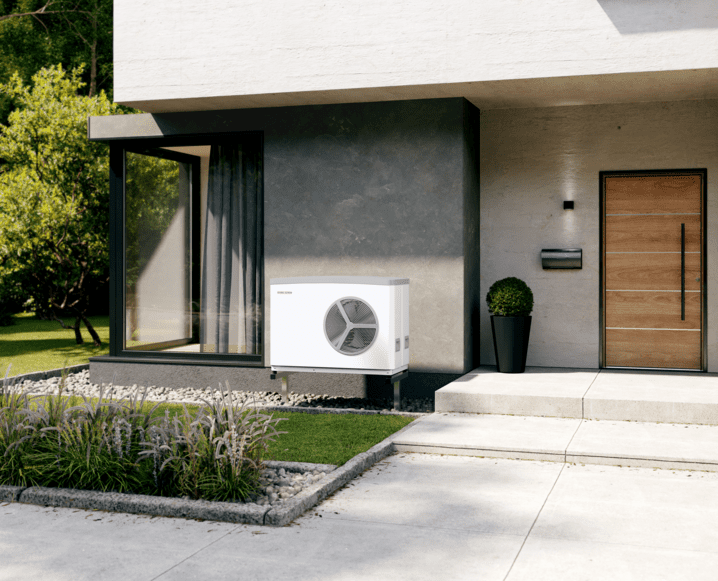

  • The air source heat pump for heating and cooling is installed outdoors
  • Ideal for new build and modernisation
  • Flow temperatures of up to 75 °C for first rate hot water convenience

View full description

Quick Find: 23378
Part Code: 206044

Weight: 339.00 Kg

Price on Application

Please contact our sales team for pricing.

Call us on
01473 559079

Contact us online
Request pricing

Need Help? Free Design Service

Call 01473 559079 or email us for a bespoke design service for your underfloor heating project FREE

This mono block heat pump with output-dependent control and highly integrated indoor module is suitable for fast, space saving installation. Flow temperatures of up to 75 °C are available for room heating and DHW heating. It can be used in a wide range of different heat distribution systems, as the heat pump is separated from the heat distribution system by means of an integral buffer cylinder. The indoor module contains the following components: DHW cylinder, cylinder charging pump, circulation pump, 3/2-way diverter valve, safety valve, electric emergency/auxiliary heater and the heat pump manager, which is used to control the system.

This integral cylinder is suitable for DHW heating in heat pump operation and at the same time can be integrated into heating systems to form the hydraulic connection. It is used for delivery to/separation between the heat pump and heating circuit. Designed for heating in family houses.

The integral cylinder consists of a stainless steel cylinder with directly applied foam insulation and an internal indirect coil. The buffer cylinder is integrated. All components for the hydraulic connection are also included. The heat pump manager, cylinder charging pump, circulation pump and 3/2-way diverter valve are included.

Benefits

  • Air source heat pump set for maximum efficiency in new build or modernisation
  • Mono block heat pump, with its variable speed compressors, ensures perfectly matched heating output and high flow temperatures all year round
  • DHW cylinder and buffer cylinder with integral hydraulic components including heat pump manager for heat pumps and heating circuit connection in a single casing
  • Thanks to flow separation, the heating system can be integrated easily and very safely

Set of components included in this pack:

  • Air source heat pump WPL-A 07 HK 230 Premium (200123)
  • Domestic Hot Water Cylinder HSBC 225 S 1 - Ultra-Lightweight cylinder (206045)
  • Remote control FET, control accessory (234723)
  • Internet Service Gateway ISG web, control unit accessory (229336)
  • Filter FS-WP 28 (28mm Filter) (233512)

Technical specifications

BrandStiebel Eltron
Cylinder capacity225 L
Cylinder diameter765 mm
Cylinder height1779 mm
Cylinder weight empty79.5 Kg
Cylinder weight full369.5 Kg
Depth593 mm
Energy efficiency classA+++/A+++
Erp ratingA
Expansion vessel size18L
Fuel typeElectric
Heat pump brandStiebel Eltron
Heat pump output7 kW
Heat pump typeAir to water
Height900 mm
PhasesSingle
Product typeAir Source Heat Pump Kit
Standing heat loss (kWh/24h)1.32
Voltage230 V
Warranty5 Years
Width1270 mm
