Theben Luxorliving S1 Rf
Need Help? Free Design Service
Call 01473 559079 or email us for a bespoke design service for your underfloor heating project – FREE

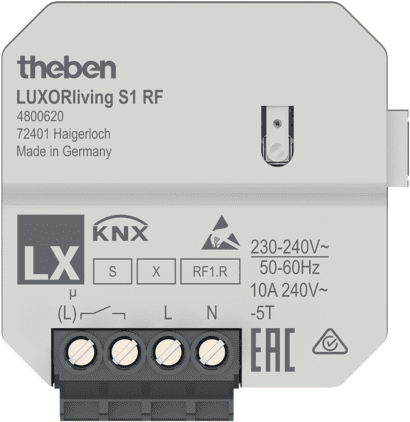

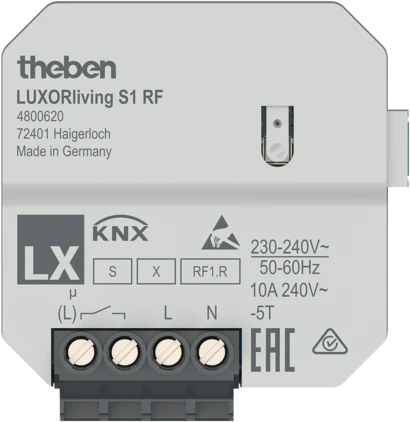

1-way wireless flush-mounted switch actuator LUXORliving
Encrypted wireless communication
Adjustable features: NC/NO contact, switching, delayed switching, pulse function
2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
The binary inputs are assigned to the switch output as standard (function test before programming)
Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
Technical specifications
| Ambient temperature | -5°C ... 45°C |
|---|---|
| Brand | Theben |
| Frequency | 50 – 60 Hz |
| Incandescent/halogen lamp load | 1800W |
| Installation type | in flush-mounted socket |
| LED lamp < 2 W | 50W |
| LED lamp > 8 W | 600W |
| LED lamp 2-8 W | 600W |
| Number of channels | 1 |
| Operating Voltage | 230 – 240 V AC 50 – 60 Hz |
