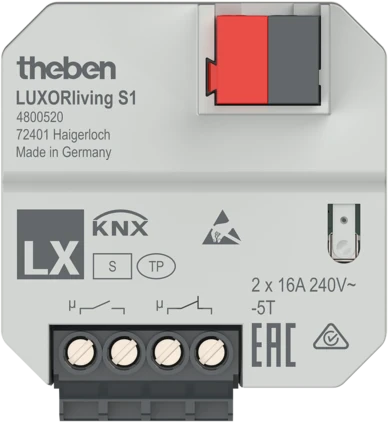

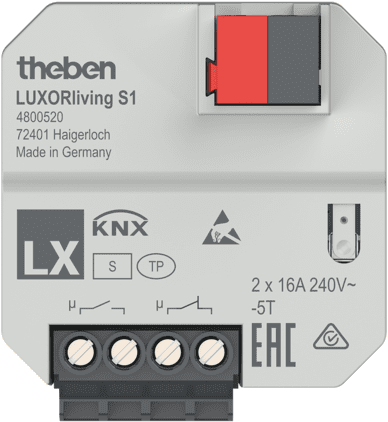

Theben Luxorliving S1

More from Inputs

Theben Luxorliving S1
Theben Luxorliving S1
Theben Luxorliving S1
Theben Luxorliving S1
Theben Luxorliving S1
Theben
  • 1-way flush-mounted switching actuator LUXORliving
  • 1x NO contact & 1x NC contact with common control
  • Adjustable features: NC/NO contact, switching, delayed switching, pulse function

View full description

Quick Find: 22222
Part Code: 4800520
Barcode: 4003468480182

Free Delivery Available
£63.25
£52.71 exc VAT

Selected Total: £0.00


    Qty

    Day of Choice Delivery available after checkout

    Need Help? Free Design Service

    Call 01473 559079 or email us for a bespoke design service for your underfloor heating project – FREE

    1-way flush-mounted switching actuator LUXORliving

    1x NO contact & 1x NC contact with common control

    Adjustable features: NC/NO contact, switching, delayed switching, pulse function

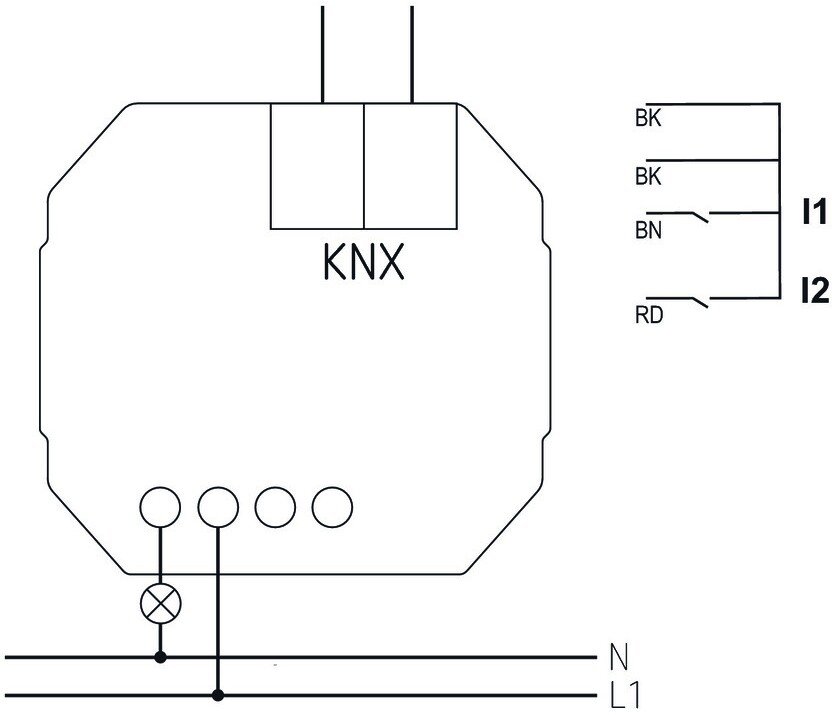

    2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)

    The binary inputs are assigned to the switch output as standard (function test before programming)

    Integrated temperature monitoring for increased operating safety, e.g. in the event of overload

    Technical specifications

    Ambient temperature-5°C ... 45°C
    BrandTheben
    Energy saving lamps300W
    Incandescent/halogen lamp load2000W
    Inrush currentmax. 740 A / 200 µs
    Installation typein flush-mounted socket
    LED lamp < 2 W50W
    LED lamp > 8 W600W
    LED lamp 2-8 W600W
    Number of channels1
    Operating VoltageBus voltage
    ≤4 mA
