Theben

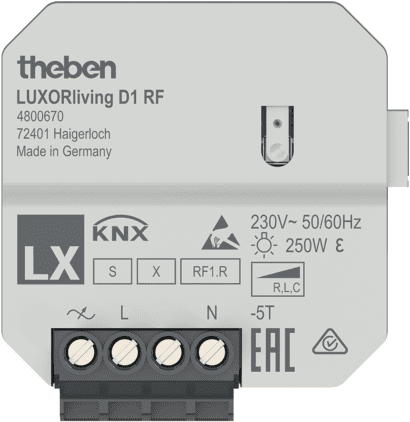

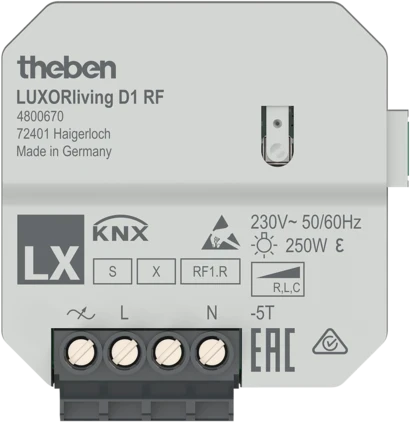

  • 1-way wireless flush-mounted dimming actuator LUXORliving
  • Encrypted wireless communicatio
  • Optimised dimming output for dimmable energy-saving lamps, LEDs, incandescent and halogen lamps, and dimmable transformers

View full description

Quick Find: 22230
Part Code: 4800670
Barcode: 4003468480236

Free Delivery Available
£99.07
£82.56 exc VAT

Selected Total: £0.00


    Qty

    Day of Choice Delivery available after checkout

    Need Help? Free Design Service

    Call 01473 559079 or email us for a bespoke design service for your underfloor heating project – FREE

    1-way wireless flush-mounted dimming actuator LUXORliving

    Encrypted wireless communicatio

    Optimised dimming output for dimmable energy-saving lamps, LEDs, incandescent and halogen lamps, and dimmable transformers

    Easy to adapt to different lamps thanks to automatic load detection

    Adjustable dimming curve for precise and flicker-free dimming

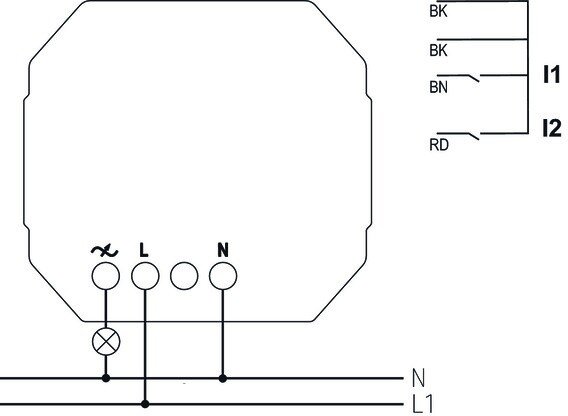

    2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)

    The binary inputs are assigned to the dimming output as standard (function test before programming)

    Integrated temperature monitoring for increased operating safety, e.g. in the event of overload

    Technical specifications

    Ambient temperature-5°C ... 45°C
    BrandTheben
    Frequency50 – 60 Hz
    Incandescent/halogen lamp load250W
    Installation typein flush-mounted socket
    LED lamp < 2 W22W
    LED lamp > 8 W250W
    LED lamp 2-8 W250W
    Number of channels1
    Operating Voltage230 V AC 50 – 60 Hz
