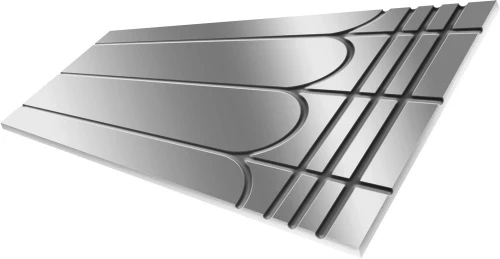

ProWarm LoFlo LITE Dual Purpose Panel 1200 x 600 x 16mm

More from Insulation & Overlay Boards

ProWarm LoFlo LITE Dual Purpose Panel 1200 x 600 x 16mm
ProWarm LoFlo LITE Dual Purpose Panel 1200 x 600 x 16mm
ProWarm
  • Suitable for tiled & laminate floors
  • Provides ready-made pipe spacing
  • Good for large regular-shaped areas

View full description

Quick Find: 16980
Part Code: LOFLOLITE16MM

£14.99
£12.49 exc VAT
RRP: £26.66

Selected Total: £0.00


    Qty

    Need Help? Free Design Service

    Call 01473 559079 or email us for a bespoke design service for your underfloor heating project – FREE

    Product overview

    Suitable for 12mm Pipework - The ProWarm LoFlo LITE Panels are dual-purpose; so can be used both underneath tiles and under floating floors, such as engineered and laminate flooring. There are two different installation methods which must be adhered to for each flooring type. The same EPS 400 kpA grade is used throughout and do not offer an inferior grade polystyrene for different floor coverings.

    Utilising 400kPa grade highly effective polystyrene and a bonded 200-micron aluminium heat diffuser to evenly and rapidly spread the transfer of heat across the floor and ensuring end-user receives the best possible heat output.

    ProWarm™ LoFlo™ LITE Dual-Purpose overlay panels are ultra-strong, lightweight, simple to install and can accept a multitude of different floor coverings such as laminate, engineered wood, and porcelain/ceramic tiles, meaning they are the ideal choice for customers who are yet to decide a finished floor covering.

    ProWarm™ LoFlo™ LITE panels are the only panels on the market that have been approved from the ground up by a recognised leader in the tile adhesives and levelling compound market and member of The Tile Association, Instarmac Group PLC, meaning you or the installer has complete peace of mind when it comes to installing this system.

    Available in 2 thicknesses (20mm/16mm) the ProWarm™ LoFlo™ LITE dual-purpose overlay panels can accommodate 2 different thickness of pipework, depending on the installation.

    Pipe spacing of 150mm are applicable for both 20mm and 16mm panels

    Each panel is 1200 x 600mm (0.72m2) in coverage meaning you would need 14 boards to cover a 10m2 area for example.

    Technical specifications

    Aluminium foil thickness200 microns
    BrandProWarm
    Depth20 mm
    Dimensions600 x 20 mm
    Length1200 mm
    Pipe Centres150 mm
    Width600 mm

    Product downloads

    LoFlo Lite Spec Sheet

    File Size: 258.47 KB
