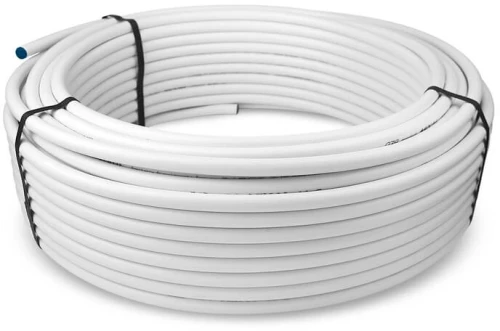

16mm European Standard Pex-Al-HDPE Pipe 100m

More from Pipe for Underfloor Heating

16mm European Standard Pex-Al-HDPE Pipe 100m
16mm European Standard Pex-Al-HDPE Pipe 100m
ProWarm

Quick Find: 12614
Part Code: 16MMPEXPIPE100M

Optional related extras for your purchase

Rothenberger Pressure Test Pump - RP30Rothenberger Pressure Test Pump - RP30£138.00
Pipe CutterPipe Cutter£9.98
Pipe Re-Rounding ToolPipe Re-Rounding Tool£4.75

Please select any required items before clicking add to basket.

Free Delivery Available
£95.23
£79.36 exc VAT
RRP: £167.04
Stock Available: 10+ Units

Selected Total: £0.00


    Qty

    Day of Choice Delivery available after checkout

    Need Help? Free Design Service

    Call 01473 559079 or email us for a bespoke design service for your underfloor heating project – FREE

    Product overview

    High quality multi-layered barrier pipe

    • Pex/Al/HDP
    • 100% oxygen impermeable
    • 50 year warranty
    • Working pressure & temperature 10bar, 95°C
    • Two bonding layers
    • ProWarm European Standard Pex-Al-HDPE pipe is the most innovative, multifunctional and most reliable pipe on the international market.
    • Using the highest quality 12mm (outside) diameter ProWarm European Standard Pex-Al-HDPE pipe.
    • The triple layered pipe creates an oxygen barrier which is 100% tight and its diameter calculated to allow for maximum performance and flexibility.
    • The middle aluminium layer diffuses the heat more efficiently and offers excellent conductivity, which is necessary for low-temperature systems - this allows the requirement of less pipe work to other systems.



    Technical specifications

    BrandProWarm
    Diameter16 mm
    Dimensions16 x 100 mm
    Halogen levelsHalogen-free
    Internal roughness0.007 mm
    Length100 m
    MaterialCrosslinked polyethylene PE-Xb internal layer, internal bonding layer, intermediate aluminium layer, external bonding layer, high density polyethylene HDPE external layer.
    Max. pressure+10 bar
    Max. Temperature+95°C/+100°C
    Minimum operating temperature-60°C
    Oxygen permeability0 mg/l
    Softening temperature135°C
    Thermal Conductivity to BS 874 (W/Mk)0.42 - 0.52 W/m·K
    UV resistanceYes, if protected with UV-resistant paint
