LUXORliving S4 Switch Actuator
LUXORliving S4 Switch Actuator
LUXORliving S4 Switch Actuator
Theben

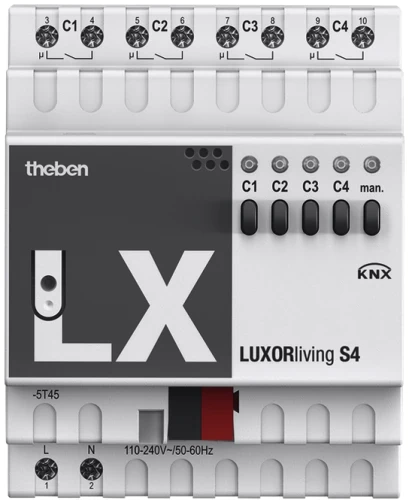

  • 4-way switching actuator LUXORliving
  • LED switching status display for each channel
  • Manual operation on device
  • Switching functions: On/Off, pulse, On/Off delay, staircase light with warning

View full description

Quick Find: 13949
Part Code: 4800420
Barcode: 400346 8480021

Free Delivery Available
£127.60
£106.33 exc VAT

Selected Total: £0.00


    Qty

    Day of Choice Delivery available after checkout

    Need Help? Free Design Service

    Call 01473 559079 or email us for a bespoke design service for your underfloor heating project – FREE

    LUXORliving S4 Switch Actuator

    Technical specifications

    BrandTheben
    Fluorescent lamp load (electronic ballast)1200 W
    Inrush currentmax. 800 A / 200 µs
    Installation typeDIN rail
    IP RatingIP20
    LED lamp < 2 W55 W
    LED lamp > 8 W200 W
    LED lamp 2-8 W180 W
    Number of channels4
    Operating Voltage110 – 240 V AC
    Stand-by consumption<0,3 W

    Videos

    Product downloads

    LUXORliving S4 Data Sheet

    File Size: 352.99 KB

    System Manual

    File Size: 5.72 MB
