Heatmiser Wireless Programmable Thermostat Slimline RF Kit
Need Help? Free Design Service
Call 01473 559079 or email us for a bespoke design service for your underfloor heating project – FREE
Product overview

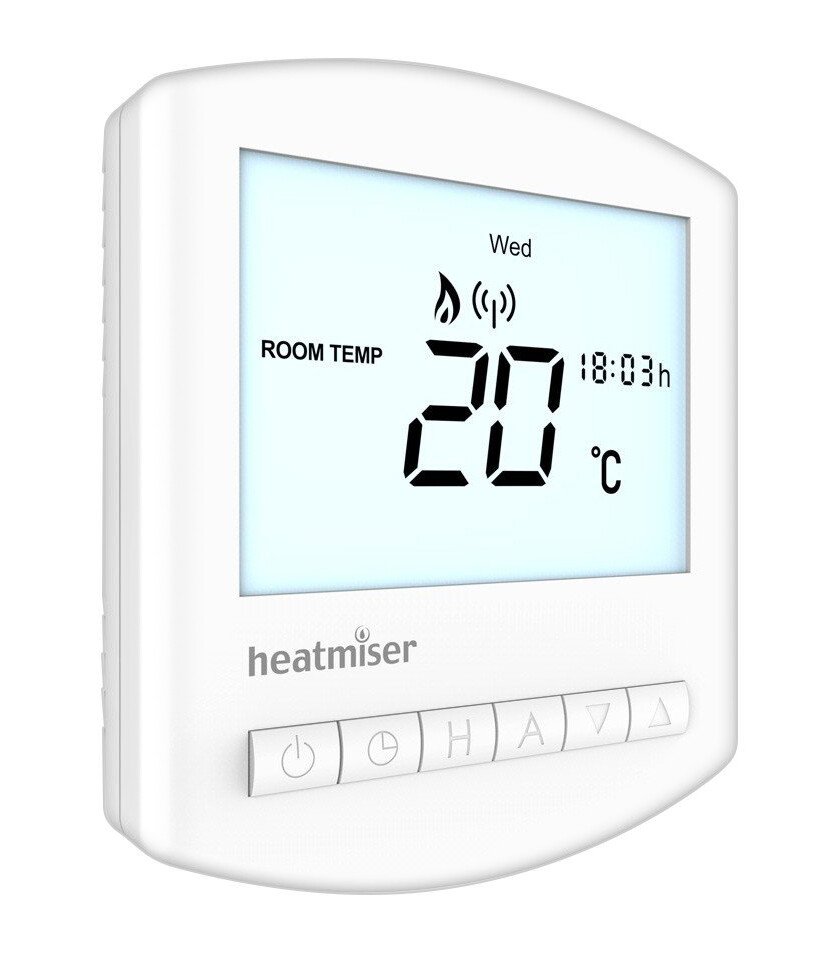

Heatmiser Slimline-RF Kit
The Heatmiser Slimline-RF kit comprises of a Heatmiser Slimline-RF multi-mode thermostat and RF-Switch wireless receiver. The receiver is hard-wired to the boiler, so is normally positioned next to the boiler or you could use the existing thermostat cabling. The wireless thermostat is then wall mounted within range of the receiver (up to 100 meters open space).
The RF switch is a 2 channel receiver providing 2 changeover contact: 1 for the heating circuit and 1 for the hot water circuit. In addition, the RF switch provides a volt-free switch for the boiler. The RF switch can be paired to the UH8-RF to provide a wireless link for the boiler signal.
Multi-mode can be setup to work in one of three modes:
- Non programmable thermostat
- Programmable thermostat
- Programmable thermostat with hot water output
Key features:
- Wireless Thermostat - 868MHz
- Heating & hot water outputs
- Distance: up to 100 meters open space
- Large back-lit display
- 5/2 or 7 day programming modes
- 4 comfort levels per day
- Optimum start
- Wireless fail safe function
- Temperature ºC/F option
- 5ºC - 35ºC range
- Holiday function
- Hold function
- Wall mount
- Frost protection
- Key lock facility
- Battery: 2 x AAA (included)
- Compatible with UH8-RF
- Remote air sensing facility (ideal for measuring the air temperature up to 20 meters from the thermostat- remote sensor probe required but not included)
- Dimensions: 98mm x 85mm x 24mm
Kit includes: 1 x Slimline-RF 1 x RF Switch
Please note - remote sensor probe required, not included.
Technical specifications
Battery lifetime | Typically 1 Year |
---|---|
Battery type | 2 x AAA |
Brand | Heatmiser |
Colour | White |
Depth | 24 mm |
Dimensions | 85 x 98 x 24 mm |
Features | Wireless |
Features | Programmable |
Features | Digital Control |
Height | 98 mm |
Product Type | Thermostat Kit |
Usage | Wet System |
Wi-Fi Compatible | No |
Width | 85 mm |
