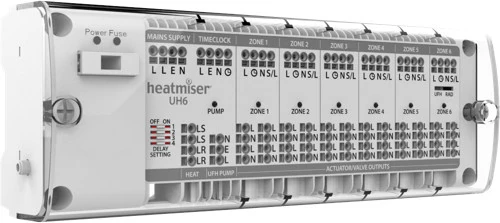

Heatmiser UH6 6 Zone Wiring Centre

View all Zone Wiring Centres

Heatmiser UH6 6 Zone Wiring Centre
Heatmiser UH6 6 Zone Wiring CentreHeatmiser UH6 6 Zone Wiring Centre
Heatmiser UH6 6 Zone Wiring Centre
  • Used for underfloor heating
  • Used for radiators
  • DIN rail mounting
  • Central wiring for up to 6 zones
  • Up to 4 actuators per zone

View full description

Quick Find: 23144
Part Code: UH6

Weight: 0.61 Kg

This product is currently awaiting on stock arrival and due in soon.

This product is currently awaiting on stock arrival and due in soon.

Backorder now to secure your delivery or sign up to be notified when this product is back in stock.


Free Delivery Available*
£44.99 ex VAT
£53.99 inc VAT
£53.99 inc VAT
£44.99 ex VAT
Stock Available: 98 Units

Qty

Estimated delivery: 1 working days

Day of Choice Delivery Available

Made To Order This is a made to order product and therefore cannot be returned or cancelled

Need Help? Free Design Service

Call 01473 559079 or email us for a bespoke design service for your underfloor heating project FREE

The Heatmiser UH6 is a 6 Zone underfloor heating wiring centre designed to work with our 230v Thermostats.

The UH6 wiring centre provides central switching and is therefore ideally situated next to the underfloor heating manifold. On demand from any zone, a 230v output is provided to switch the relevant zone actuators, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers.

Heat & UFH Pump Delay

When there’s a demand it is possible to set a timed delay, before activating the Pump & Heat* outputs

Creepage Function

During hot weather the heating may not be required as often, which means after long periods of the UFH pump not being used, the pump can seize and refuse to operate.

To prevent this, it is good practice to operate the pump once a day, the creepage function does this for you. Once enabled the UH6 wiring centre will operate the pump for 1 minute, only if the outputs have not been operated by a thermostat, within the preceding 24 hours. This function does not operate the HEAT output.

Up to 4 actuators can be connected to each zone.

  • Central wiring for up to 6 zones
  • DIN Rail Mounting Option (DIN Rail not included)
  • Output for underfloor heating valve and pump activated when any thermostat calls for heat
  • Actuator outputs: 230v
  • Dimensions (LxHxD) 265x95mm

Technical specifications

BrandHeatmiser
ColourWhite
Depth64 mm
Dimensions2.65 x 95.5 x 64 mm
Height95.5 mm
IP ratingIP20
Product typeWiring Centre
Supply voltage230v
Warranty2 years
Width265 mm

Product downloads

Heatmiser UH6 Datasheet

File Size: 2.46 MB

Heatmiser UH6 Manual

File Size: 2.60 MB
