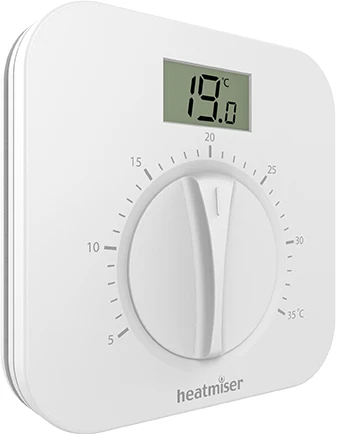

Heatmiser DS1-L Central Heating Thermostat

More from Heatmiser Thermostats

Heatmiser DS1-L Central Heating Thermostat
Heatmiser DS1-L Central Heating Thermostat
  • Flush Mounting
  • Modern Appearance
  • Variable Switching Differential
  • LCD Shows Actual and Heat On Indication
  • Easily increase or decrease the required temperature

View full description

Quick Find: 12692
Part Code: DS1-L v2

Free Delivery Available
£22.19 exc VAT
RRP: £27.80

Product Qty Total: £0.00
Element Shop

Product overview

Weight 0.12 Kg

The Heatmiser DS1-L v2 central heating dial type thermostat incorporates an LCD. In normal operation, the actual room temperature is displayed on the LCD, rotating the dial will display the set temperature for 5 seconds.

This Manual Thermostat offers greater control when compared with standard bi-metallic thermostats. This room thermostat requires at least 3 wires to operate (Live, Neutral and Switch wire) Please check your wiring and the manual download to ensure your system is compatible.

Key Benefits

  • LCD shows actual & set temperatures and heat on Indication
  • Lock facility
  • Modern
  • Easily increase or decrease the required temperature
  • Variable switching differential

Technical specifications

Depth14 mm
Dimensions92 x 92 x 14 mm
Height92 mm
Max. switching current3A
Product TypeThermostat
Supply Voltage230v
Temperature Range (Deg C)5-35°C
UsageWet System
Warranty2 Years
Wi-Fi CompatibleNo
Width92 mm

Product downloads

Data Sheet

File Size: 514.05 KB

Thermostat Manual

File Size: 525.38 KB
