Danfoss WT-P - BasicPlus2 - LCD Display Programmable Thermostat

More from BasicPlus2

Danfoss WT-P - BasicPlus2 - LCD Display Programmable Thermostat
Danfoss WT-P - BasicPlus2 - LCD Display Programmable Thermostat
Danfoss WT-P - BasicPlus2 - LCD Display Programmable Thermostat
Danfoss WT-P - BasicPlus2 - LCD Display Programmable Thermostat
Danfoss WT-P - BasicPlus2 - LCD Display Programmable Thermostat
Danfoss
  • Modern design with white back light
  • Away function
  • Frost protection mode
  • Child safety lock

View full description

Quick Find: 18288
Part Code: 088U0625
Barcode: 5702425103025
Weight: 0.20 Kg

Optional related extras for your purchase

QtyProductPrice
Danfoss FH-CWF Floor Sensor - 3 MetreDanfoss FH-CWF Floor Sensor - 3 Metre£5.39

Please select any required items before clicking "Add to Basket".

Free Delivery Available
£51.25
£42.71 exc VAT
RRP: £68.34
Stock Available: 193 Units

Selected Total: £0.00


    Qty

    Day of Choice Delivery available after checkout

    Need Help? Free Design Service

    Call 01473 559079 or email us for a bespoke design service for your underfloor heating project – FREE

    Features of room thermostats, WT- D (display) and WT-P (display and programmable):

    • Modern design with white back light
    • Away function
    • Child safety lock

    Selectable temperature control modes:

    • Room temperature control (default)
    • Room with floor temperature limit control
    • Floor temperature control

    Selectable floor temperature control modes:

    • High
    • Low

    Maximum and minimum limit settings for room and floor temperature.

    Optional room temperature display when power is OFF (default setting: no display).

    Floor sensor terminals

    For thermostats equipped with LCD display, enabling control of maximum floor temperature and reducing the risk of overheated and damaged floors (for specific maximum floor temperatures, refer to the recommendations from floor suppliers).

    Frost protection mode

    Use this feature instead of turning the thermostat off completely to protect against damages due to low temperatures. The room temperature will be maintained around 5° C.

    Temperature calibration

    This function allows you to change the temperature set-point of the room thermostat, to compensate for a possible temperature deviation between the room thermostat and, for example, the centre of the room.

    Advanced programmable timer

    This function allows you to set a timer-controlled program for automatic comfort temperature and energy saving lower setback temperature when standard room comfort temperature is not required.

    Technical specifications

    BrandDanfoss
    ColourWhite RAL9010/Dark Grey RAL7024

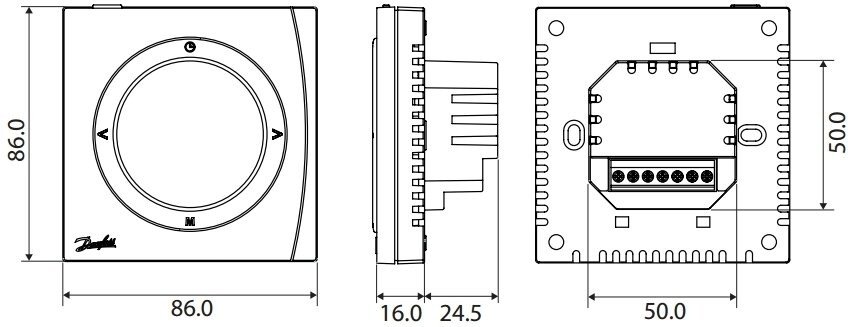

    Dimensions86 x 86 x 16 mm
    Erp ratingClass 1
    Floor temperature rangeOff, 20 - 45° C
    Installation typeOn-wall
    IP RatingIP30
    Operating temperature rangeOff, 5 - 35° C
    SensorNTC 100K, accuracy: ±1%
    TypeLCD display with push buttons, programmable
    Voltage230V 50/60Hz V

    Product downloads

    Data Sheet

    File Size: 1.19 MB

    Installation Manual

    File Size: 896.70 KB
